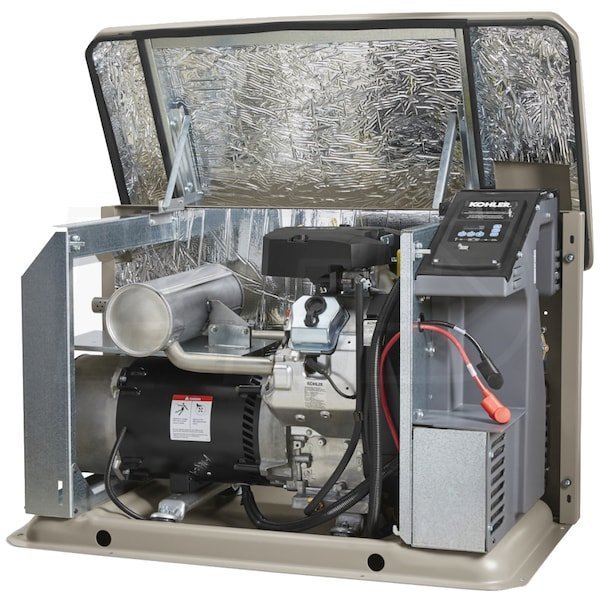

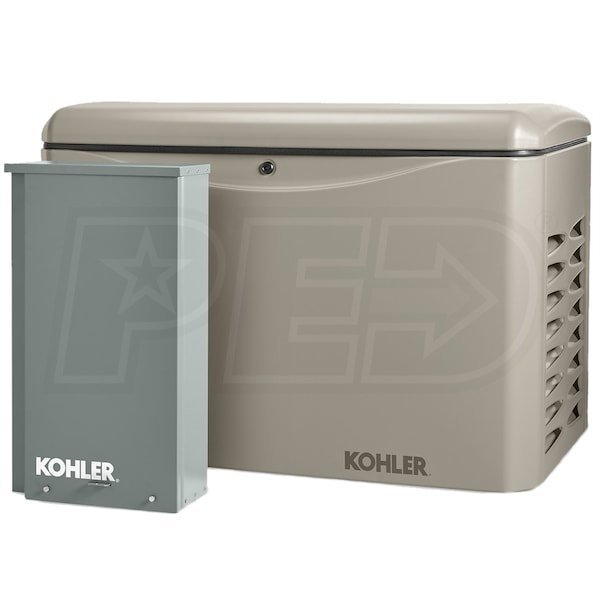

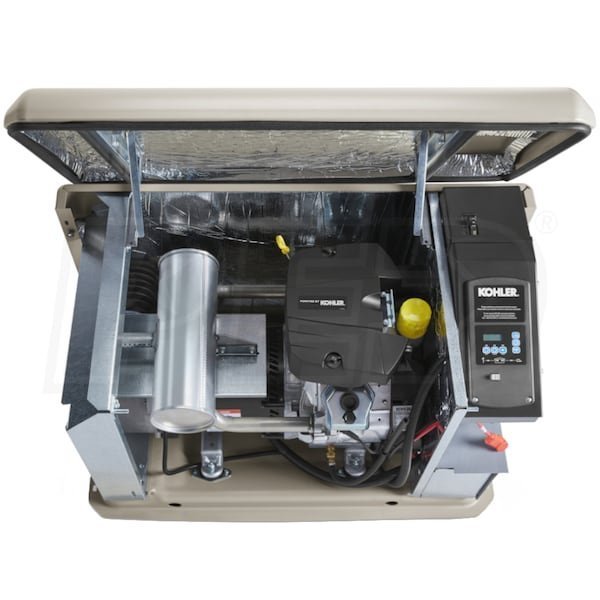

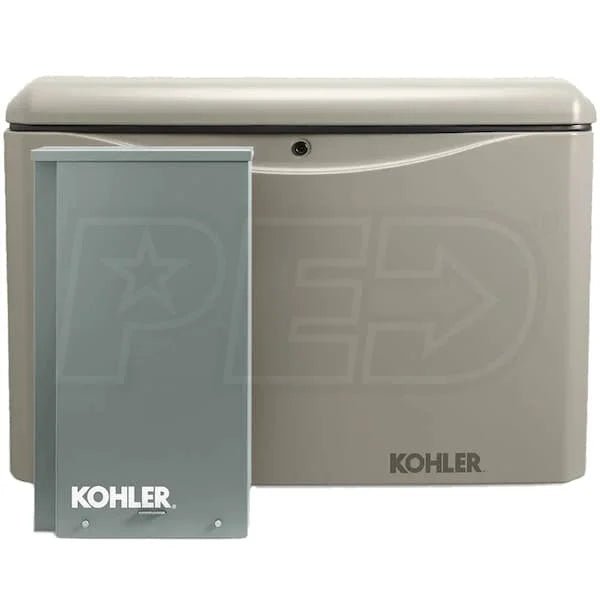

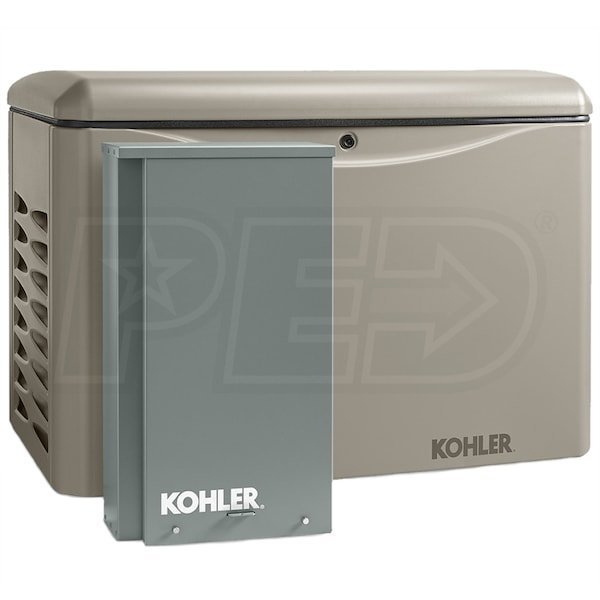

Kohler 20RCAL-200SELS 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding)
Product details
20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator
Fully Automatic Operation – Includes Automatic Transfer Switch
Premium 5-Year / 2000 Hour Limited Warranty
Backed by Kohler’s extraordinary reliability & performance
RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
NEMA 3R Enclosure mounts between meter & main service panel
Built-In Load Shed – Manage (2) HVAC + (4) Non-Essential loads***
Kohler Command PRO® OHV Engine
Meets emission regulations for U.S. EPA & California
Powerful and reliable engine with hydraulic valve lifters
New 100% Corrosion-Proof Aluminum Enclosure
Aluminum base can be mounted on gravel or cement pad
Meets 181 MPH wind rating; Impact-resistant down to -30° F
Powerful Performance w/ PowerBoostâ„¢ Technology
Greater motor-starting ability for large electrical loads
Premium Power Quality (+/-1% Voltage Regulation)
Protects sophisticated electronics with low distortion (<5%THD)
Fast Response Time
Kohlerâ„¢ generators restore power in as little as 10 seconds
New Silencer Reduces Sound Levels & Provides Quiet Operation
Maintains neighborhood solitude – approx 69 dB(A) at 7 m (23 ft)
RDC2 (6-Button) Digital Controller
Glare-resistant, 2-line 16-character display – No More Codes
ATS status via LED lights on controller; Built-In 2.5A Battery Charger
Real time clock allows you to easily set weekly exercise
Remote Monitoring System (Included)
Built-in Ethernet card, no hardware needed
Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)
KOHLER® Energy Management App
Get real-time alerts on generator status, remote control & maintenance records
Easier Installation
Streamline design reduces time required to install generator
Installation Flexibility*
Can be installed within 18″ of a building / home
*Always check local building codes
General Information
Product Category
Generator – Standby
Overview
Weight
555 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
Product Style
Standby Generator
Product Length
47 Inches
Product Width
26.2 Inches
Product Height
32.2 Inches
UPC
650531447500
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m
69 Run (64 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
ATS Service Disconnect
Cooling System
Air Cooled
UL Listed
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
Commercial Engine Warranty
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
