Big Tex Single Axle Utility Trailer | 35SA
Product details
A trailer that works hard at home and on the job, the 35SA Single Axle Utility Trailer delivers versatility, reliability, and convenience—no matter the task at hand. Transporting equipment, landscaping supplies, or even some side-by-side vehicles, it’s a trailer that’s built for homeowners and outdoor enthusiasts seeking a rugged and dependable trailer for years to come.
STANDARD FEATURE
AVAILABLE OPTIONS
Axles
3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes
Brake Flanges for Easy Brake Addition
Electric Brakes w/ Complete Break-Away Kit
Suspension
Multi-Leaf Slipper Spring
Coupler
2″ A-Frame
2″ Forged Coupler
Safety Chains
1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)
Jack
2,000# Top Wind, Set-Back Jack with Removable Sand Foot
2,000# Fold-Up Jack
Frame
3″ x 2″ x 3/16″ Angle
Cross-Members
3” x 2” x 3/16” Angle
Floor
Treated Pine Floor
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders
9″ x 32″ Rolled Formed w/ Back
Ramps
4′ Slide-In Angle Ramps
4′ Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist
4′ Tall Rear Ramp Gate w/ Coil Spring Assist
5′ Tall Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets
Additional Stake Pockets (Each)
Trailer Plug
4-Way Flat w/ Loom
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Grommet-Mounted Lifetime L.E.D. Lighting
Tires
ST205/75 R-15 Load Range C
Bolt Pattern
5 Bolt
Spare Mount
Side Spare Tire Mount
Spare Tire
Spare Tire (ST205/75R-15 LR-C)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Red
Grey
White
Desert Tan
Jet Blue
Slime Green
Implement Green
Equipment Orange
Medium Yellow
Tie-Downs
(4) Tie Down Loops Inside Bed
Additional Tie Loops
Sides
17″ Tall Open sides with 2” Angle uprights and 2″ x 2″ Square Tubing Top Rail
2′ High Sides (Open, Total Height with Top Rail)
3’ High Sides (Open, total height with Top Rail)
4’ High Sides (Open, total height with Top Rail)
Car Hauler Style (No Side Rails)
Enclose Sides w/ Expanded Metal (Per Square Foot)
Enclose Sides w/ Sheet Metal (Per Square Foot)
MODEL
35SA-10
PULL TYPE
Bumperpull
GVWR
2995 lbs
GAWR (EA. AXLE)
3500 lbs
EMPTY WEIGHT
893 lbs
CARGO CAPACITY
2102 lbs
BED LENGTH
10′
BED WIDTH
77″

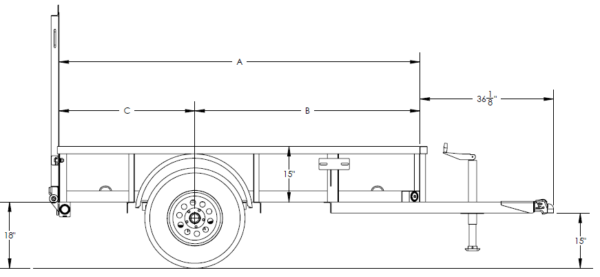

A
121-1/2”
B
73″
C
48-1/2”
TONGUE LENGTH
36-1/8″
35SA-12
983 lbs
2012 lbs
12′
145-1/2”
85”
60-1/2”
35SA-14
1073 lbs
1922 lbs
14′
169-1/2”
97″
72-1/2”
