Big Tex Pro Series Tandem Axle Vanguard Trailer | 10TV
Product details
Rugged. Durable. Adaptable. Work harder and longer with the 83’’ wide 10TV Tandem Axle Vanguard Trailer, purpose-built for landscapers transporting heavy-duty lawn and garden equipment. Higher, v-crimped steel sides provide the strength you need to handle the day-to-day demands of your job while also securing and protecting cargo. No need to worry about cargo falling off during transportation. For the ultimate in versatility, it also includes an adjustable coupler that makes it a simple task to adjust to different hitch heights within a fleet of trucks—perfect for those running bigger landscaping operations.
Standard Feature
Available Options
Axles
2 – 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self Adjusting Brakes
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Coupler
2-5/16” Demco EZ Latch
Adjustable Pintle in Channel 2-5/16” Stamped Coupler
Safety Chains
1/4″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
8,000# Drop Leg, Set-Back Jack (Bolted On)
Frame
5″ x 3″ x 1/4″ Angle
Cross-Members
3” x 2” x 3/16” Angle
Floor
Treated Pine or Douglas Fir
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders
9″ x 72″ 16 Ga. Tear Drop Fender
Ramps
4′ Heavy Duty Integrated Ramp Gate wIth Gas Shock Assist
5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist
Stake Pockets
(4) Stake Pockets on Outside Frame
Additional Stake Pockets (Each)
Trailer Plug
7-Way RV
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Grommet-Mounted Lifetime L.E.D. Lighting
Tires
ST225/75R-15 Load Range D
Bolt Pattern
6 Bolt
Spare Tire
Spare Tire (ST225/75R-15 LR-D)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Red
Grey
White
Desert Tan
Jet Blue
Slime Green
Implement Green
Equipment Orange
Medium Yellow
Tie-Downs
(4) Tie Down Loops Inside Bed
5/8″ D-Ring Additional Tie Loops
Sides
29-3/8″ Tall Sides w/ 24″ V-Crimped Steel Panels (16 Ga.)
Storage
Bolt-On Landscape Box for (24″ x 24″ x 81-1/2″)
Top Rail
2″ x 2″ Square Tubing
Uprights
3″ x 2″ x 3/16″ Angle
MODEL
10TV-18
PULL TYPE
Bumperpull
GVWR
9990 lbs
GAWR (EA. AXLE)
5200 lbs
EMPTY WEIGHT
2350 lbs
CARGO CAPACITY
7640 lbs
BED LENGTH
18′
BED WIDTH
83″

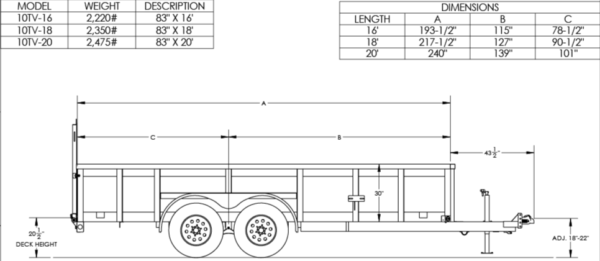

A
217-1/2″
B
127″
C
90-1/2″
TONGUE LENGTH
43-1/2″
10TV-20
2475 lbs
7515 lbs
20′
240″
138″
102″
