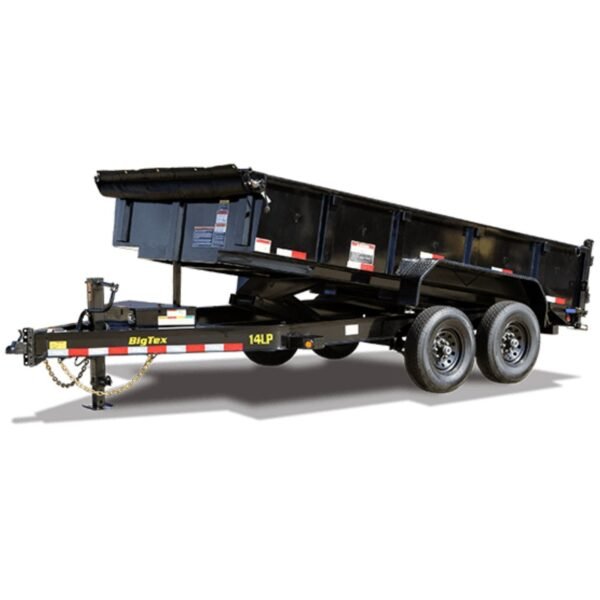

Big Tex Heavy Duty Ultra Low Profile Dump Trailer | 14LP
Product details
Tough as nails for the toughest, most demanding projects, the 14LP Heavy Duty Low Profile Dump Trailer is designed for the construction workers and those transporting large quantities of materials or equipment. And while it’s built to handle heavy-duty hauling tasks, it’s also packed with features to make the toughest jobs easier such as an ultra-low profile deck and side step to provide convenience and ease of use during loading, unloading, and transportation of materials.
Standard Feature
Available Options
Axles
2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Drop Axles (Lowers Deck Height to 24″ from Ground)
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Tongue
8″ Seamless I-Beam Integrated w/ Frame (10#)
Coupler
2-5/16″ Ball, Adjustable Demco EZ Latch Coupler
Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains
3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
12,000# Drop-Leg Jack (Side Wind)
12,000# Elec/Hyd. Jack BY Stillwellâ„¢
Frame
8″ Seamless I-Beam (10#)
Cross-Members
3″ Channel on 16″ Centers
Floor
10 Gauge Smooth Steel
Upgrade Floor to 7-Gauge Steel
Fenders
9″ x 72″ 14 Ga. Diamond Plate Double Broke
Ramps
Not Included
6.5’ Slide In Ramp Package
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Spare Tire
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire Upgrade (ST235/80 R-16 LR-G)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger
Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Power Down & Gravity Down Hydraulic Pump
5 Watt Solar Charger
Wireless Remote
Ram
Self-Contained Scissor
Sides
24″ Tall (10 Ga) with formed Channel Supports
24″ Expanded Metal Side Extensions
3′ Solid Sheet Metal Sides
4′ Solid Sheet Metal Sides
Stabilizers
Rear Stabilizer Stands
Steps
Convenient Side-Step to Access Top Rail
Storage
Lockable Pump and Battery Box mounted in Front of Bed
Tarp
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail
3″x 2″ Rectangular Tubing
Steps & Handles
Model
14LP-16
14LP-14
14LP-12
Pull Type
Bumperpull
GVWR
14000 lbs
GAWR (Ea. Axle)
7000 lbs
Empty Weight
4250 lbs
4180 lbs
3870 lbs
Cargo Capacity
9750 lbs
9820 lbs
10130 lbs
Bed Length
16′
14′
12′
Bed Width
83″
A
192″
168″
144″
B
115-3/4″
100″
C
76-1/4″
68″
Tongue Length
51-1/8″
