Big Tex Heavy Duty Tandem Axle Pipe Top Utility Trailer | 14PI
Product details
Facing down heavy-duty, demanding, and challenging loads? Then it’s time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer—a heavy-duty pipe-top equipment trailer that’s specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, it’s a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
STANDARD FEATURE
AVAILABLE OPTIONS
Axles
2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self-Adjusting Electric Brakes on All Hubs
Suspension
Multi-Leaf Spring w/ Equalizer
Coupler
Adjustable 2-5/16” Demco EZ Latch
Adjustable Pintle in Channel
Safety Chains
1/4″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
8,000# Drop-Leg Jack (Side Wind)
Frame
5″ x 3″ x 5/16″ Angle
Cross-Members
3″ Channel on 16″ Centers
Floor
Treated Pine Floor
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot)
Fenders
9″ x 72″ 14 Ga. Diamond Plate Double Broke
Ramps
4′ Slide in Channel Ramps
4′ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist5’ Stand Up Ramps
5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist
Stake Pockets
Outside Frame Stake Pockets
Additional Stake Pockets (Each)
Trailer Plug
7-Way RV
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Grommet-Mounted Lifetime L.E.D. Lighting
Tires
ST235/80 R-16 Load Range E
Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern
8-Bolt
Spare Mount
Side Spare Tire Mount
Spare Tire
Spare Tire (ST235/80 R-15 LR-E)
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Red
Grey
White
Desert Tan
Jet Blue
Slime Green
Implement Green
Equipment Orange
Medium Yellow
Tie-Downs
5/8″ D-Ring
Sides
15″ Tall Open sides with 3″x 2”x 3/16″ Angle uprights and 3″ x 3″ Square Tubing Top Rail
2′ High Sides (Open, Total Height with Top Rail)
3’ High Sides (Open, total height with Top Rail)
4’ High Sides (Open, total height with Top Rail)
Car Hauler Style (No Side Rails)
Enclose Sides w/ Expanded Metal (Per Square Foot)
Enclose Sides w/ Sheet Metal (Per Square Foot)
Storage
Bolt-On Landscape Box (24″ x 24″ x 87″)
MODEL
14PI-16
PULL TYPE
Bumperpull
GVWR
14000 lbs
GAWR (EA. AXLE)
7000 lbs
EMPTY WEIGHT
2740 lbs
CARGO CAPACITY
11260 lbs
BED LENGTH
16′
BED WIDTH
83″

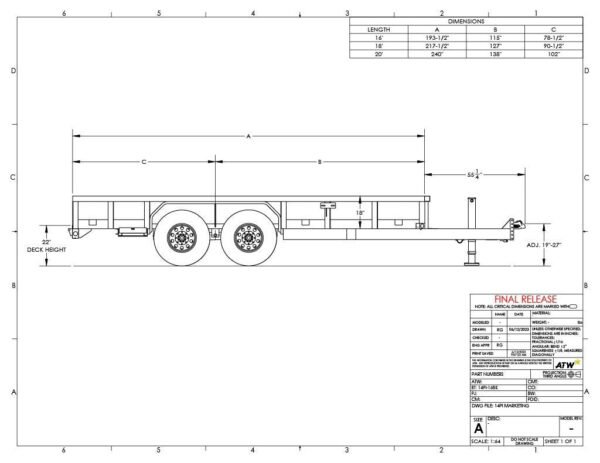

A
193-1/2″
B
115″
C
78-1/2″
TONGUE LENGTH
42-3/4″
14PI-18
2890 lbs
11110 lbs
18′
217-1/2″
127”
90-1/2″
14PI-20
3040 lbs
10960 lbs
20′
240″
138″
102″
